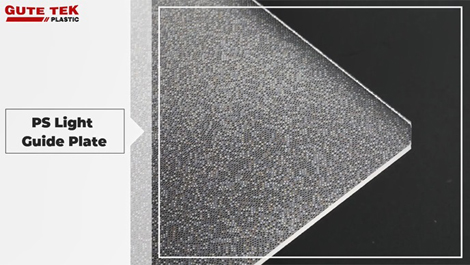

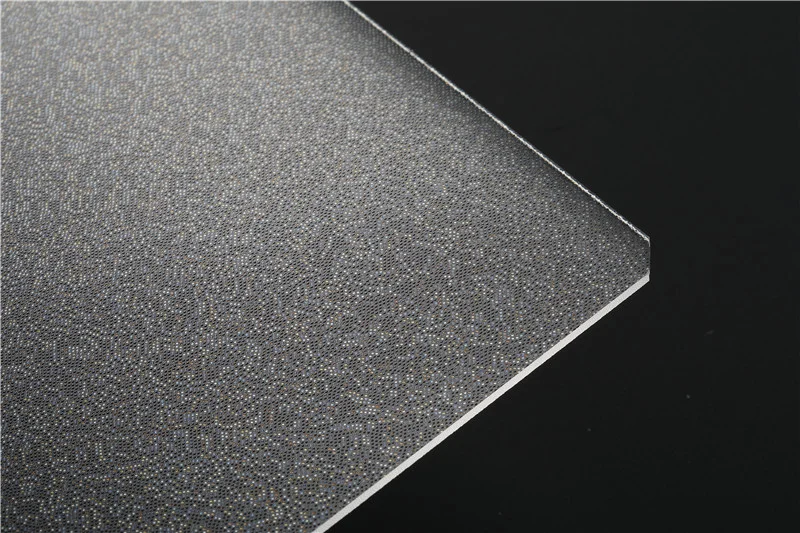

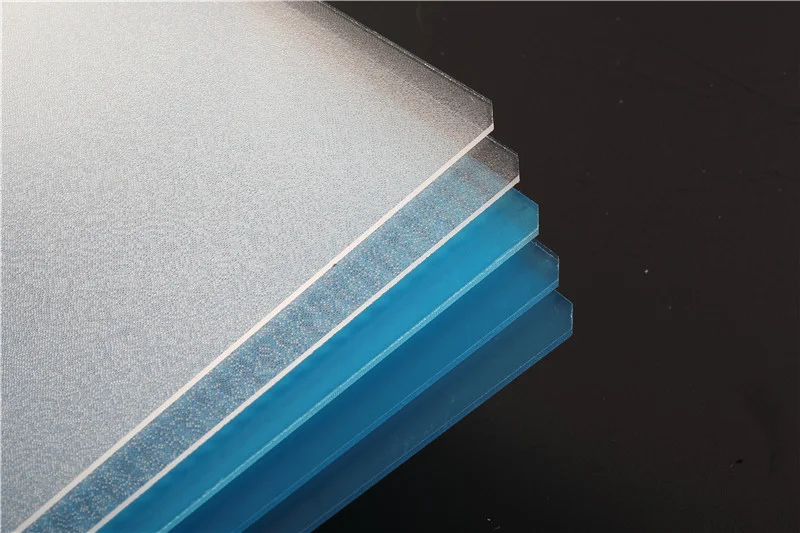

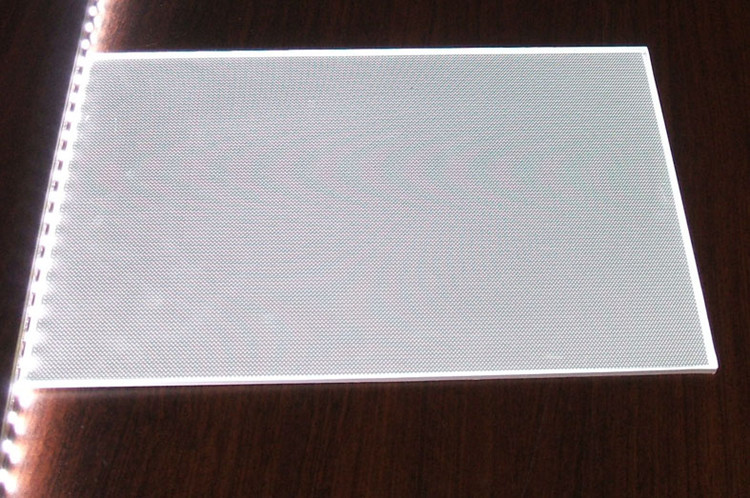

PS light guide plate LGP regular size |
||||||||
|
Mode No. |
Transmitance |
Thickness |
Applications |
Light Entrance |
||||
|
Transmitance Testing Machine |
Integrating Sphere Machine |
Single Side |
Double Sides |
4 Sides |
Long Side |
Short Side |
||
|
GT-36K (Fix Position Cut) |
90% |
90% |
2.1mm |
|
600*600mm |
600*600mm (Polishing Not Necessary) |
√ |
√ |
|
|
600* 1200mm |
|
√ |
|
||||
|
GT-60K (Fix Position Cut) |
90% |
90% |
3.0mm |
|
|
600*600mm |
√ |
√ |
|
GT-61K |
90% |
90% |
3.0mm |
|
600*600mm |
|
√ |
√ |
|
|
600*1200mm |
|
√ |
|
||||
|
GT-57 (Ink Print) |
92% |
92% |
1.7mm |
300*300mm |
300*300mm |
Ink Printed Necessary |
√ |
√ |
|
300*600mm |
300*600mm |
√ |
√ |
|||||
|
300*1200mm |
300* 1200mm |
√ |
|
|||||
|
|
600*600mm |
√ |
√ |
|||||
|
|
600* 1200mm |
√ |
|
|||||
|
GT-76 (Ink Print) |
90% |
90% |
1.7mm |
300*300mm |
300*300mm |
|
√ |
√ |
|
300*600mm |
300*600mm |
|
√ |
√ |
||||
|
300*1200mm |
300*1200mm |
|
√ |
|
||||
|
|
600*600mm |
600*600 |
√ |
√ |
||||
|
|
600*1200mm |
|
√ |
|
||||
|
GT-86 (Ink Print) |
90% |
90% |
1.7mm |
300*300mm |
300*300mm |
Ink Printed Necessary |
√ |
√ |
|
300*600mm |
300*600mm |
√ |
√ |
|||||
|
300*1200mm |
300*1200mm |
√ |
|
|||||
|
|
600*600mm |
√ |
√ |
|||||
|
|
600* 1200mm |
√ |
|
|||||
|
GT-65 |
90% |
90% |
3.5mm |
|
|
∅600*(600- 1000) mm |
|
|
|
GT-67 |
90% |
90% |
3.1mm |
∅100-600/100-500mm |
|
|
||
|
GT-72K |
90% |
90% |
3.0mm |
300*300mm |
300*300mm |
|
√ |
√ |
|
300*600mm |
300*600mm |
|
√ |
|
||||
|
300*1200mm |
300* 1200mm |
|
√ |
|
||||
|
GT-73K |
90% |
90% |
2.0mm |
|
300*300mm |
|
√ |
√ |
|
|
300*600mm |
|
√ |
|
||||
|
|
300* 1200mm |
|
√ |
|
||||
|
GT-68 |
90% |
90% |
3.0mm |
150*any mm |
300*300mm |
300*300mm |
√ |
|
|
|
300*600mm |
|
√ |
|
||||
|
|
300*1200mm |
|
√ |
|
||||
|
200〜400/∅300〜400mm |
|
|
||||||
|
GT-69 |
90% |
90% |
2.83mm |
≤130*any mm |
√ |
|
||
|
≤200(R&S)/∅200-300mm |
|
|
||||||
|
Customized Availability |
90%-92% |
90%-92% |
/ |
WMax: 1220mm |
/ |
/ |
||
|

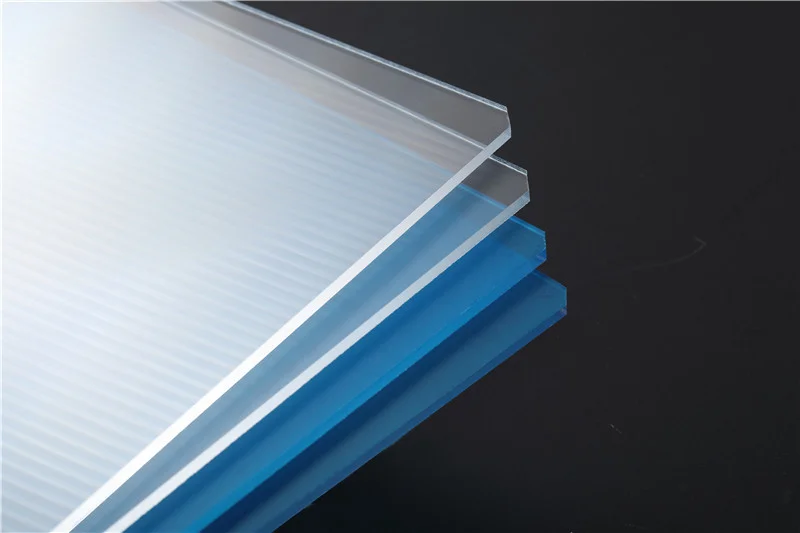

PS light guide plate plastic Sheet |
|||||
|
Item |
Content |
Unit |
Results |
Method |
|
|
Optical Property |
Transmittance |
% |
90±1% |
Integrating Sphere |
|
|
Haze |
% |
92±3% |
ASTMD1003 |
||
|
Thermal Property |
Thermal Contraction |
MD(Machine Direction) |
% |
≤1.0 |
ASTMD1204 |
|
TD(Transverse Direction) |
% |
≤1.0 |
|||
|
coefficient of thermal expansion |
mm/mm*℃ |
0.00008 |
quzrtz dilatometer |
||
|
Vicat softening temperature |
℃ |
85 |
D-1521 |
||
|
Melt Index |
G/10 Min |
1.9 |
D-1238 |
||
|
Mechanical Property |
HDT(heat distortion temperature) |
℃ |
75 |
ASTMD1525 |
|
|
Tensile Strength |
kg/cm2 |
527 |
D638 |
||
|
Tensile Elongation |
% |
≥2 |
|||
|
IZOD compacting strength |
kg-cm/cm |
1.7 |
D256 |
||
|
Density |
|
g/cm3 |
1.05 |
Density tester |
|
|
Electrical Property |
Surface Resistance |
Obverse |
Ω |
≤1014 |
ASTMD257 |
|
Reverse |
Ω |
≤1014 |
|||
Q: Do you just produce PS LGP? How about PMMA LGP?

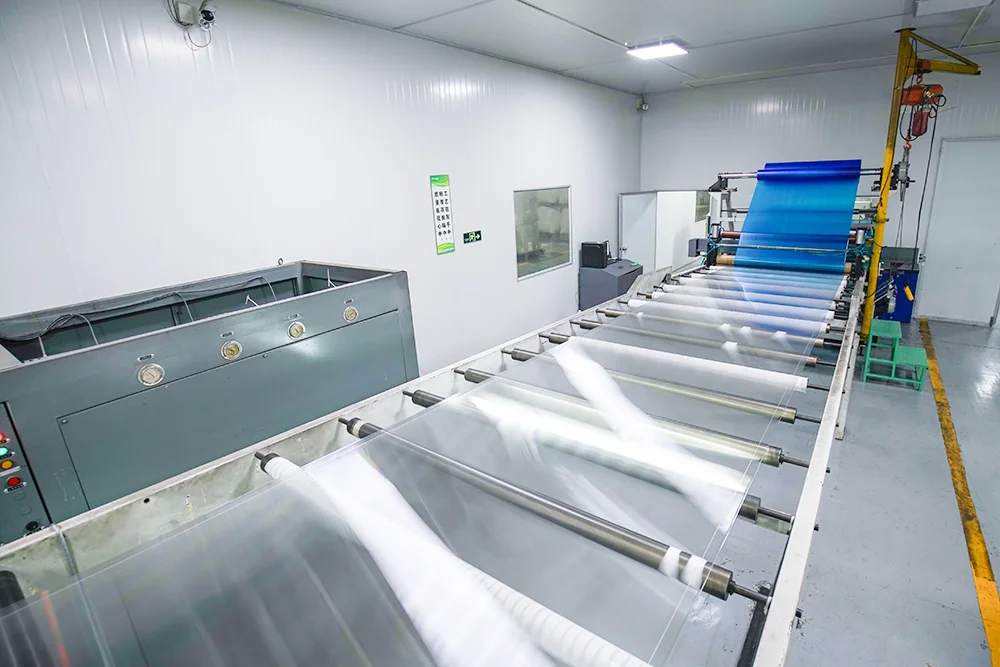

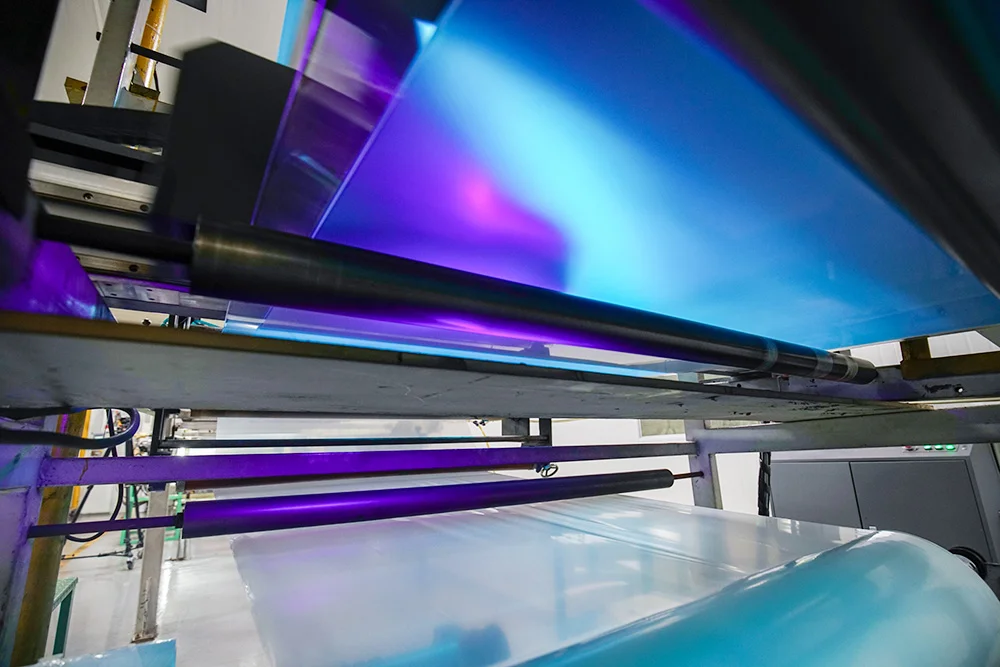

A: We have over 13 extrusion line for produce sheet, besides the PS LGP, there is also PMMA LGP.
Q: Do you just offer big LGP sheet ,could you help us to cut to small size and different shape?
A: We do not only offer the big size of PS LGP sheet, we also have our deep processing workshop to proceed products, cut to different size and shape.
Q: How many days for samples delivery? Is samples free of charge?
A: The samples of existing specification products which has stock is 3-5 days, and the sample is free of cost; The customized samples need 7-10 days, the customized samples’ cost is negotiable.
Q: I don’t know which transmittance is suit for my product, how to choose the right one?
A: We have professional test equipments, you could send us your product and we will test our existing product, find the suitable one for you, then we will send you the diffuser for confirmation; If the existing one not match, we could customize the diffuser plate for you and send the samples to you for your confirmation.
Q: Do you use recycle Or new raw material?
A: We never use recycle materials, we only use 100% raw materials.
Q: Could you accept LC for payment?
A: We could accept LC payment, we are very familiar with LC payment process, many big buyer pay us through LC.
Q: Have your products passed through the laboratory test? Have gotten the qualified certificate or not?
A: We are an ISO9001 company, we have our own Lab for testing, besides, al ofl our products have been tested by SGS international laboratory and gotten the qualified certificate.
