One-step solution supplier for led light diffuser sheet, LGP sheet and light reflective film.

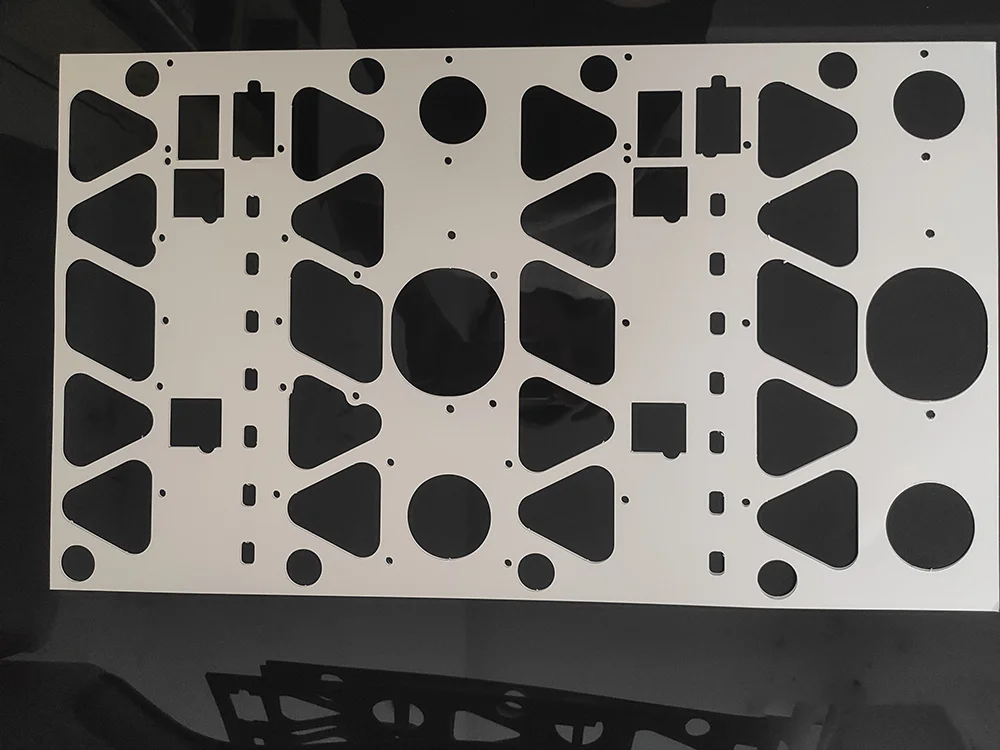

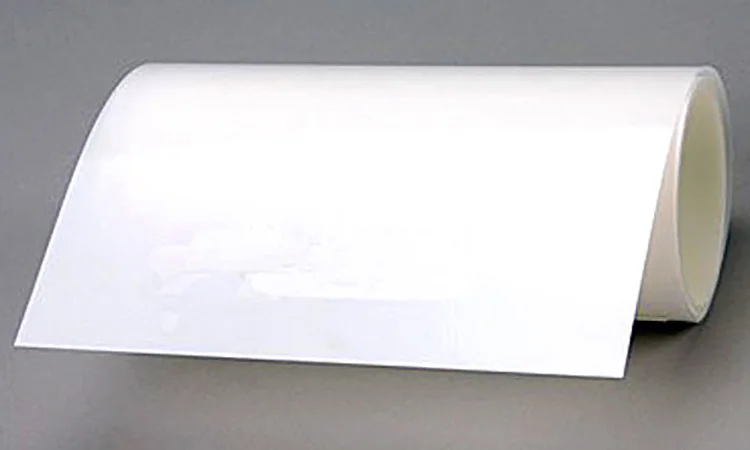

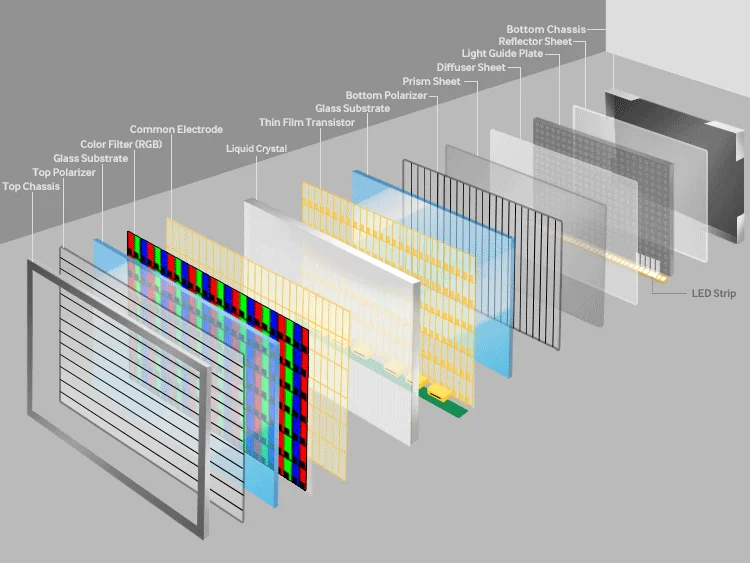

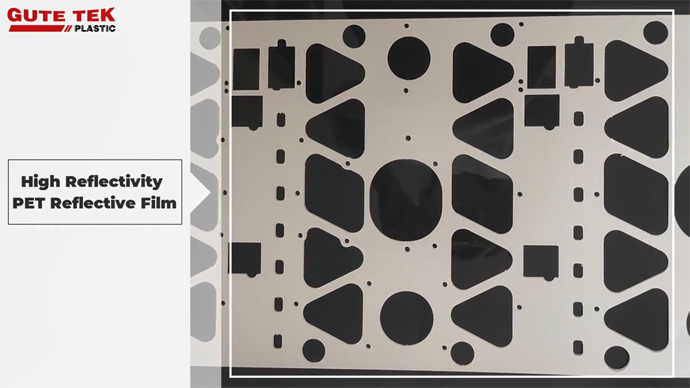

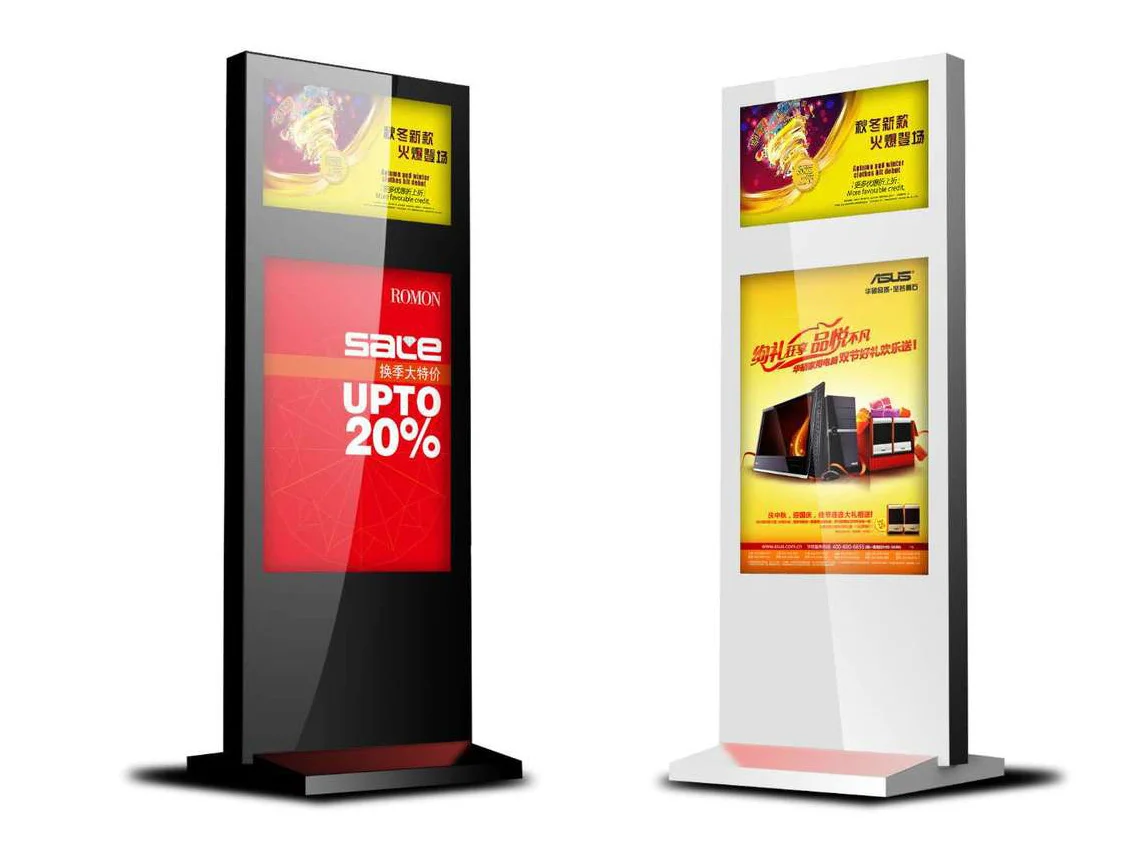

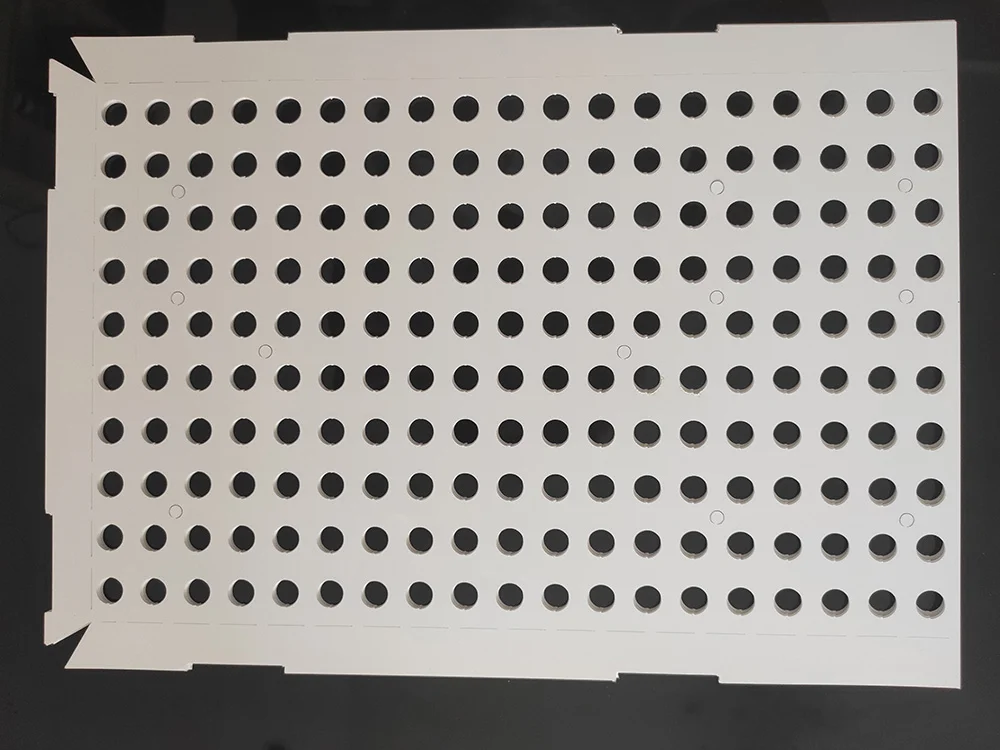

PET reflective film is widely used in lighting industry, LCD screen, LCD advertising player, TV, slim light box, downlight and panel light; It is very flexible to be made into different shape through die cut.
|
PET Reflective Film |
|||||
|
Item |
Content |
Unit |
Results |
Method |
|
|
Thermal Property |
Thermal shock test |
60℃, 90%RH, 500h |
/ |
Good |
GUTE Method |
|
Thermal shock test |
-25℃*1h-65℃*1h, 60%RH, 50cycles |
/ |
Good |
||
|
Heat stability |
85℃, 240h |
/ |
Good |
||
|
Heat stability |
-20℃, 240h |
/ |
Good |
||
|
Mechanical Property |
Tensile Strength |
MD(Machine Direction) MD≥60 |
MPa |
≥80 |
GB/T 13542.4-2009 |
|
TD(Transverse Direction) TD≥60 |
MPa |
≥73 |
|||
|
Tensile Elongation |
MD(Machine Direction) MD≥40 |
% |
≥70 |
GB/T 13542.4-2009 |
|
|
TD(Transverse Direction) TD≥40 |
% |
≥49 |
|||
|
Heat Shrinkage |
MD(Machine Direction) MD≤0.5 |
% |
≤0.26 |
GB/T 13542.4-2009 (85℃, 30 min) |
|
|
TD(Transverse Direction) TD≤0.2 |
% |
≤0.07 |
|||
|
Physical Property |
Thickness |
0.075-0.35 |
mm |
/ |
GB/T 6672-2001 |
|
Whiteness(60°) |
40-60 |
GU |
50 |
GB/T 9754-2007 |
|
|
Reflectance |
91-97 |
% |
/ |
GB/T 3979-2008 |
|
Q: How many days for samples delivery? Is samples free of charge?
A: The samples of existing specification products which has stock is 3-5 days, and the sample is free of cost; The customized samples need 7-10 days, the customized samples’ cost is negotiable.
Q: I don’t know which transmittance is suit for my product, how to choose the right one?
A: We have professional test equipments, you could send us your product and we will test our existing product, find the suitable one for you, then we will send you the diffuser for confirmation; If the existing one not match, we could customize the diffuser plate for you and send the samples to you for your confirmation.
Q: Do you use recycle Or new raw material?
A: We never use recycle materials, we only use 100% raw materials.
Q: Could you accept LC for payment?
A: We could accept LC payment, we are very familiar with LC payment process, many big buyer pay us through LC.
Q: Have your products passed through the laboratory test? Have gotten the qualified certificate or not?
A: We are an ISO9001 company, we have our own Lab for testing, besides, al ofl our products have been tested by SGS international laboratory and gotten the qualified certificate.

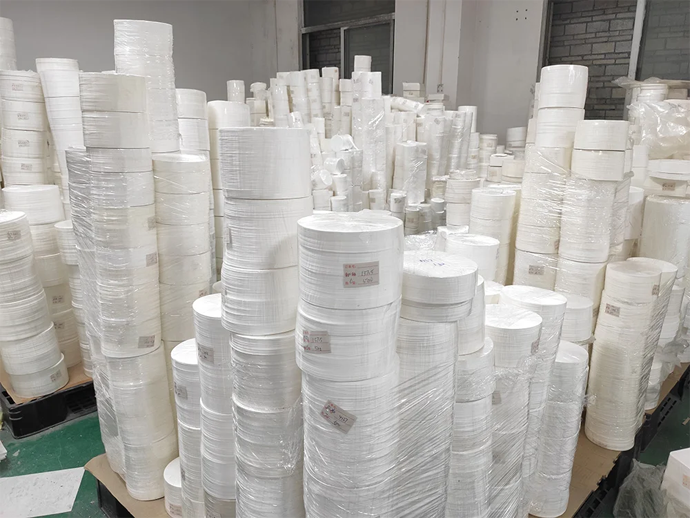

Q: You just offer PET reflective paper with roll, could offer the cut size?
A: We not only offer the roll material, but also offer the cut size of reflective film.
