GUTE TEK PLASTIC Customized Impact Resistance Polystyrene Diffusion Plate manufacturers From China. Fast and Efficient Sales system: we have Pre-sale service, there is special sample department for serve our clients,for existing products are free samples; for the commercial production, delivery is 7-10days, fast delivery and quick response.
|
Impact resistant PS diffuser regular size |
||||||
|
Model Name |
Thickness |
Light Transmittance |
Light Transmittance in Spectrum system test |
Plate Size |
MOQ |
Recommend Application & Model Features |
|
GT-4K |
1.0mm |
48% |
84% |
1200*1200mm |
10 tons |
Over 30mm height or with 48PCS/64PCS LED back lighting fixture |
|
GT-5K |
1.2mm |
54% |
83% |
1170*1170mm |
Special for FSL impact resistance downlight and linear LED light bar |
|
|
GT-5KL |
1.2mm |
55% |
83% |
1200*1200mm |
Special for NVC impact resistance linear LED light bar fixture with 60mm height,the linear led light bar fixture used as cabinet lighting, under-cabinet lighting, interior vehicle lighting, bookshelf lighting, police/emergency vehicle task lighting, footwell lights, and trunk/cargo lights. |
|
|
Customized Availability |
1.0-1.5mm |
48%-55% |
83% |
WMax: 1220mm |
/ |
|

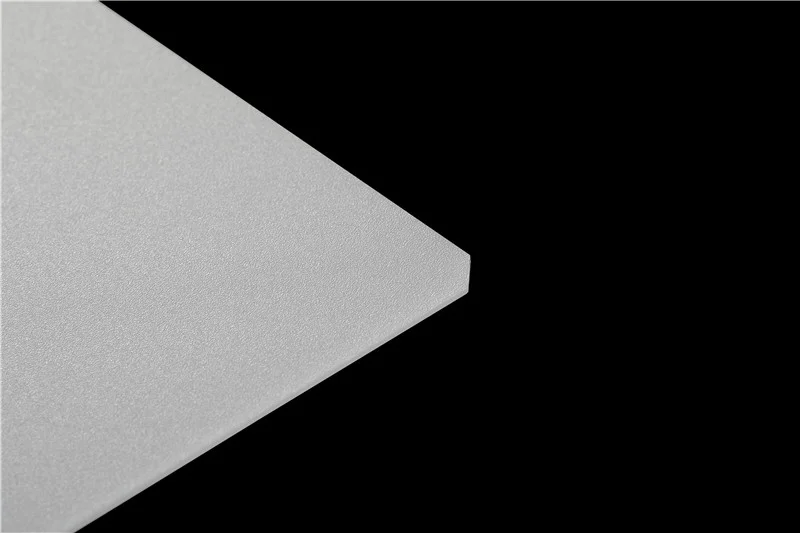

Introduction: Impact Resistance Polystyrene Diffusion Plate
PS Impact Resistant Diffuser Sheet
General Inspection
|
Item |
Technical Requirement |
Test Method |
|
L (mm) |
±0.3 |
Calliper |
|
W (mm) |
±0.3 |
Calliper |
|
Thickness (mm) |
1.0±0.1 |
Micrometer/Thickness Gauge |
|
Impact Value（J） |
0.35 |
Spring Impact Hammer |
|
Transmittance(%) |
48±3 |
Haze Transmittance Tester |
|
Haze(%) |
93±3 |
|
|
Appearance |
1, No obvious foreign body or bad scratch l Foreign Body≤0.35mm，Acceptability≤2; l Heterochromatic distance greater than 100mm; l No scratches are allowed on the panel; 2, Plate warpage ≤0.5mm, package is well protected |
Visual Inspection/Feeler |
Optical Property
|
Property |
Test Method |
Unit |
Result |
|
Tensile Strength |
D638 |
Kg/cm² |
527 |
|
Anti Inflation Modulus |
D638 |
Kg/cm²(X102^4) |
2.8 |
|
Elongation |
D638 |
% |
2 |
|
Flexural Strength |
D790 |
Kg/cm² |
971 |
|
Flexural Modulus |
D790 |
Kg/cm²(X102^4) |
2.9 |
|
IZOD compacting strength |
D256 |
Kg-cm/cm |
1.7 |
|
Heat Deformation Temperature |
D648 |
°C |
75 |
|
Vicat Softening Temperature |
D-1521 |
°C |
85 |
|
Melt Index |
D-1238 |
G/10 Min |
1.9 |
|
Remaining Monomer |
GC |
PPM |
284 |
|
Density |
Specific Gravity Tester |
g/cm³ |
1.05 |
|
Coefficient of Thermal Expansion |
Quartz Dilatometer Method |
mm/mm*℃ |
0.00008 |
Q: Do you just produce PS diffuser? How about PMMA and PC diffusion plate?
A: We have over 13 extrusion line for produce sheet,besides the PS diffuser we PC diffuser and PMMA diffuser.
Q: Do you just offer big diffuser sheet, could you help us to cut to small size and different shape?
A: We not only offer the big size of PS diffuser sheet, we also have our deep processing workshop to proceed products, cut to different size and shape, UV print on the diffuser sheet, thermoforming the sheet to be different shape like blister light box or ceiling light lamp cover.
Q: How many days for samples delivery? Is samples free of charge?
A: The samples of existing specification products which has stock is 3-5 days, and the sample is free of cost; The customized samples need 7-10 days, the customized samples’ cost is negotiable.
Q: I don’t know which transmittance is suit for my product, how to choose the right one?
A: We have professional test equipments, you could send us your product and we will test our existing product, find the suitable one for you, then we will send you the diffuser for confirmation; If the existing one not match, we could customize the diffuser plate for you and send the samples to you for your confirmation.
Q: Do you use recycle Or new raw material?
A: We never use recycle materials, we only use 100% raw materials.
Q: Could you accept LC for payment?
A: We could accept LC payment, we are very familiar with LC payment process, many big buyer pay us through LC.
Q: Have your products passed through the laboratory test? Have gotten the qualified certificate or not?
A: We are an ISO9001 company, we have our own Lab for testing, besides, al ofl our products have been tested by SGS international laboratory and gotten the qualified certificate.
