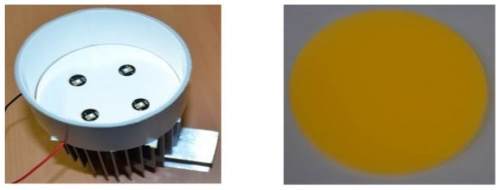

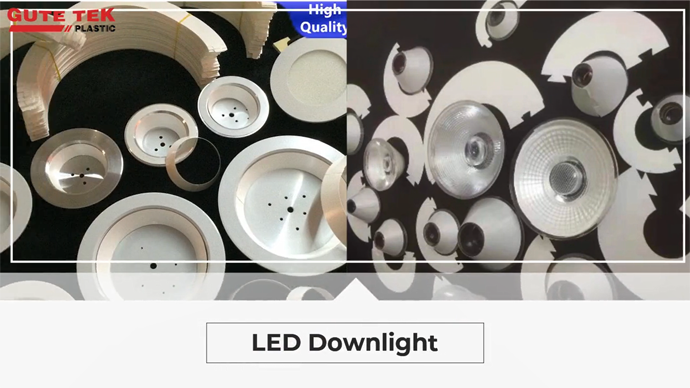

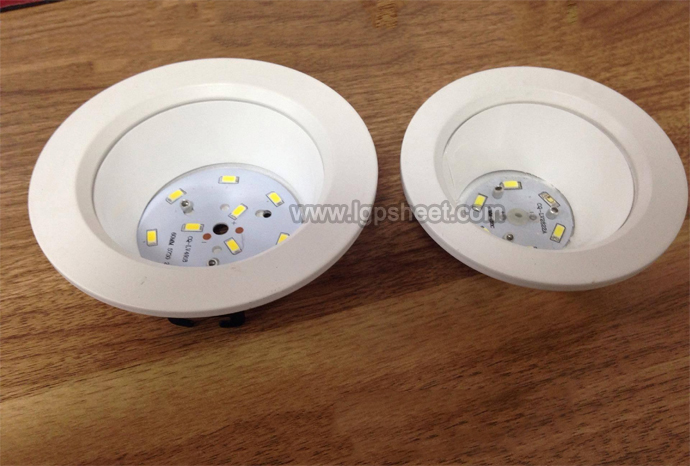

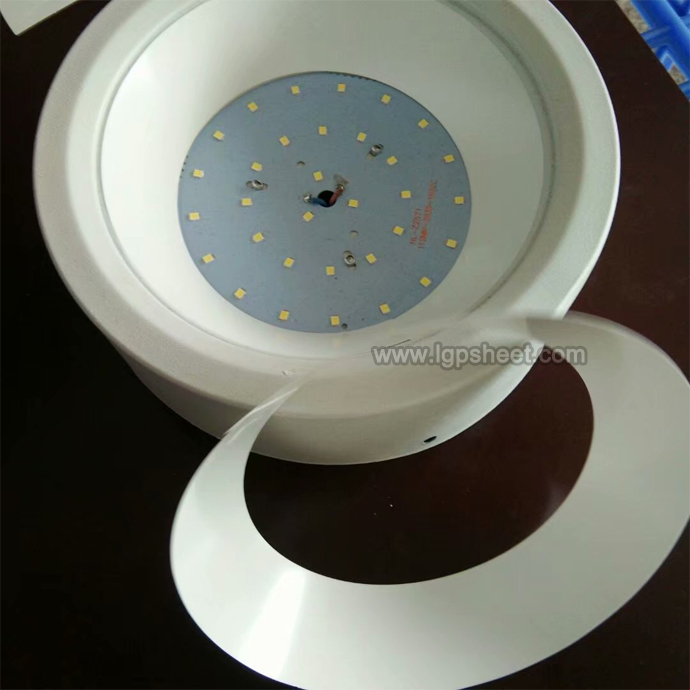

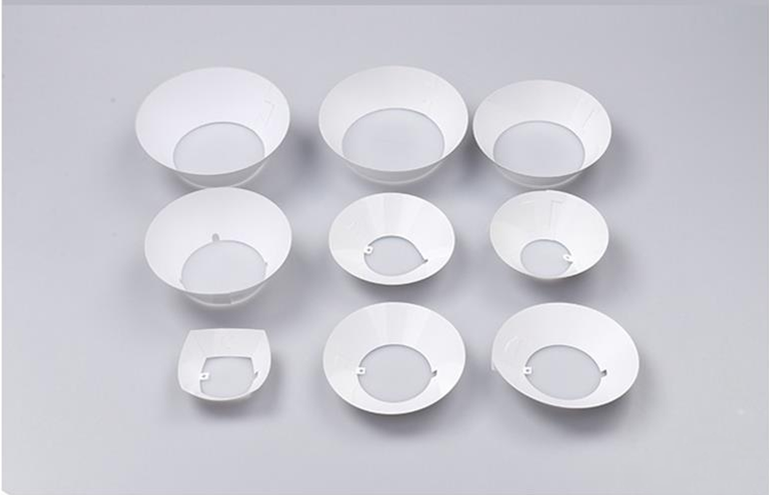

GUTE TEK PLASTIC PET light Provide high reflectivity for lighting, can custom shape to fit the interior surface of the downlight.
GUTE TEK PLASTIC PET reflective film is to increase the reflectivity of optical surface, widely used in LCD backlight module, Light source backlight surface (LED, CCFL), Flat panel light emitting module, Ultra thin light box, crystal light box, different size Downlights, etc.
Item
GUTE TEK PET reflective film for Downlight
Categories
High reflectivity PET reflective film application.
Material
Light reflective film: PET
Application
Led Downlight
Size
According to customer demand
Packing
Protective film+Pallet/Bubble bag/Carton etc.
Lead Time
Sample: 7~10days
Mass production: 10~25 days
Shipment
Air/Sea shipping Express: FedEx / DHL / UPS / TNT etc.
Payment
T/T, LC

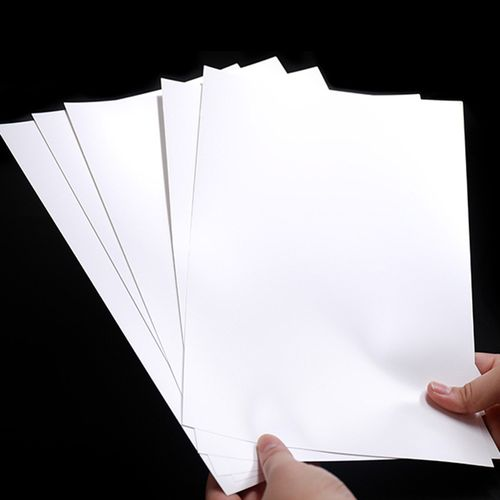

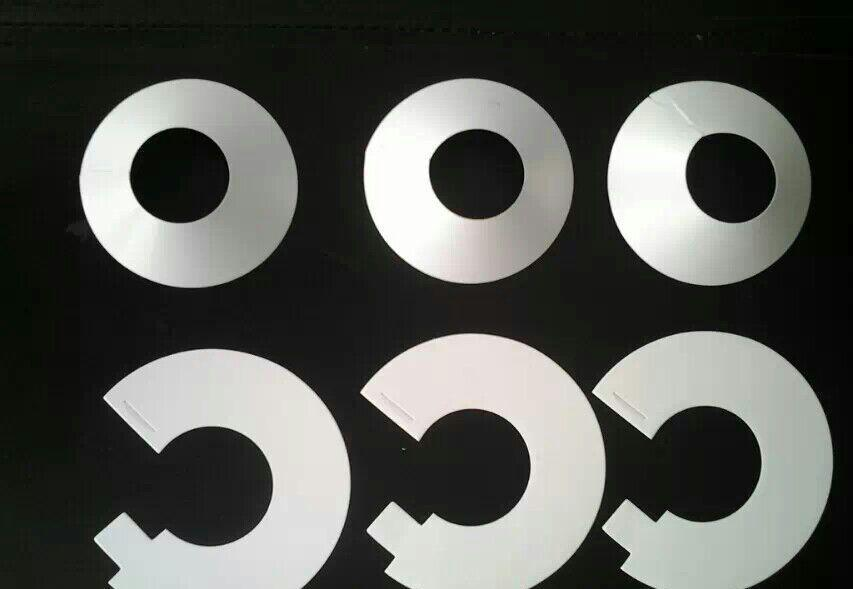

GUTE TEK PET light reflective film is light weight and soft, it’s easy to made into different shape through die cut, besides, pet reflective film is high density, good temperature resistance and good stiffness, 91%-97% reflectivity make it satisfy with TV, LCD screen, panel lights, etc. reflect demand.
|
PET Light Reflective Film |
|||||
|
Item |
Content |
Unit |
Results |
Method |
|
|
Thermal Property |
Thermal shock test |
60℃, 90%RH, 500h |
/ |
Good |
GUTE Method |
|
Thermal shock test |
-25℃*1h-65℃*1h, 60%RH, 50cycles |
/ |
Good |
||
|
Heat stability |
85℃, 240h |
/ |
Good |
||
|
Heat stability |
-20℃, 240h |
/ |
Good |
||
|
Mechanical Property |
Tensile Strength |
MD(Machine Direction) MD≥60 |
MPa |
≥80 |
GB/T 13542.4-2009 |
|
TD(Transverse Direction) TD≥60 |
MPa |
≥73 |
|||
|
Tensile Elongation |
MD(Machine Direction) MD≥40 |
% |
≥70 |
GB/T 13542.4-2009 |
|
|
TD(Transverse Direction) TD≥40 |
% |
≥49 |
|||
|
Heat Shrinkage |
MD(Machine Direction) MD≤0.5 |
% |
≤0.26 |
GB/T 13542.4-2009 (85℃, 30 min) |
|
|
TD(Transverse Direction) TD≤0.2 |
% |
≤0.07 |
|||
|
Physical Property |
Thickness |
0.075-0.35 |
mm |
/ |
GB/T 6672-2001 |
|
Whiteness(60°) |
40-60 |
GU |
50 |
GB/T 9754-2007 |
|
|
Reflectance |
91-97 |
% |
/ |
GB/T 3979-2008 |
|
Why choose us
1, Good price, GUTE TEK is a physical factory, self operated and self sold, without intermediate price difference, moreover, the batch price is more favorable.2, High efficiency, GUTE TEK have advanced equipment and professional processing experience, so we can handle affairs with more confidence and faster efficiency.
3, High quality, GUTE TEK products can be delivered only after passing the full inspection. Our customer satisfaction reaches 95% and the quality is guaranteed.
4, Guarantee after sales, GUTE TEK has professional customer manager provides one-to-one service to solve your worries.
5, Fast delivery, GUTE TEK short production cycle and on-time delivery

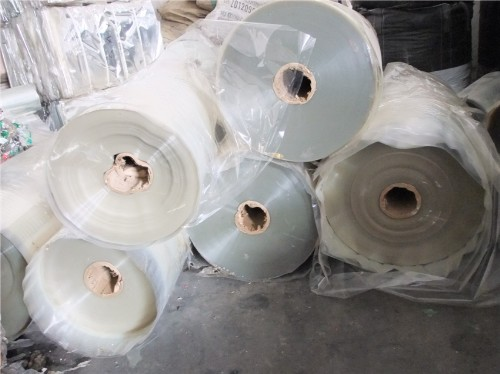

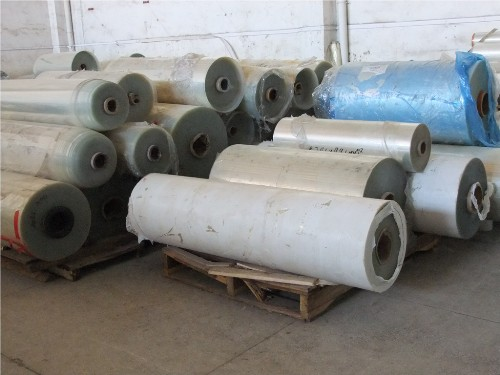

Packaging & Shipping
