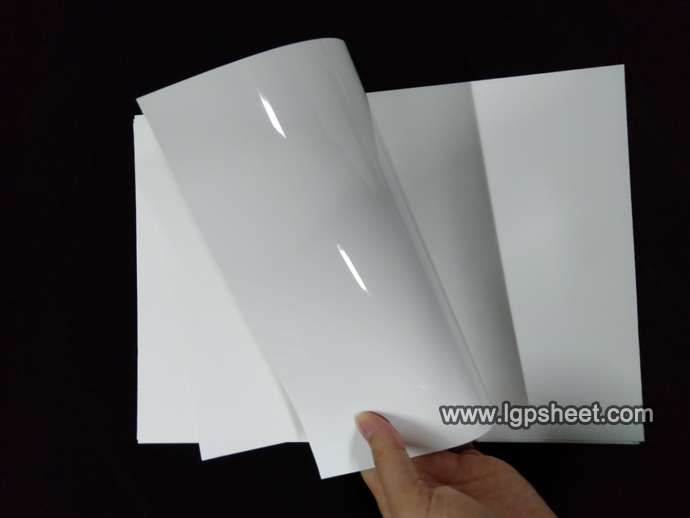

GUTE TEK PLASTIC PC reflective film has high reflectivity, more than 98%; it has fire rating, Complies with UL94 V-2 combustion standard; it has good flexibility, not easy to break.

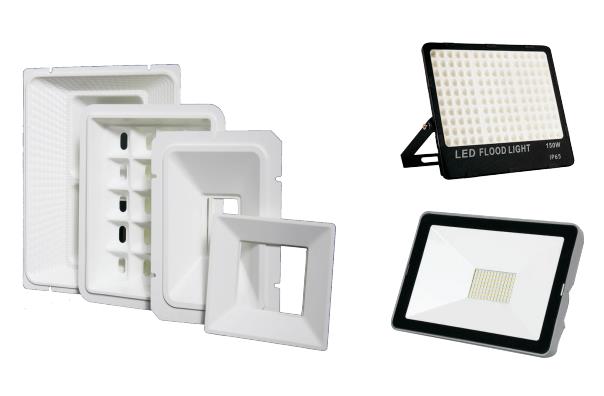

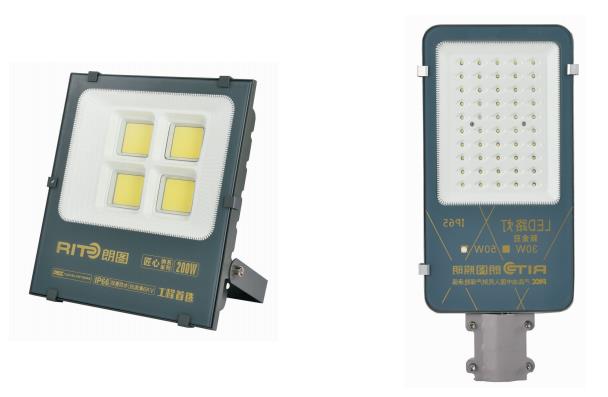

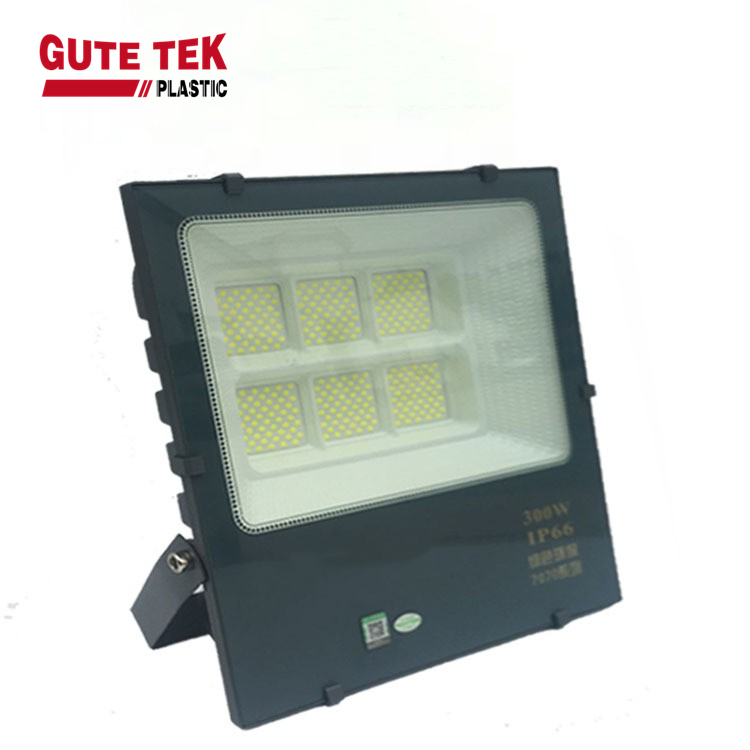

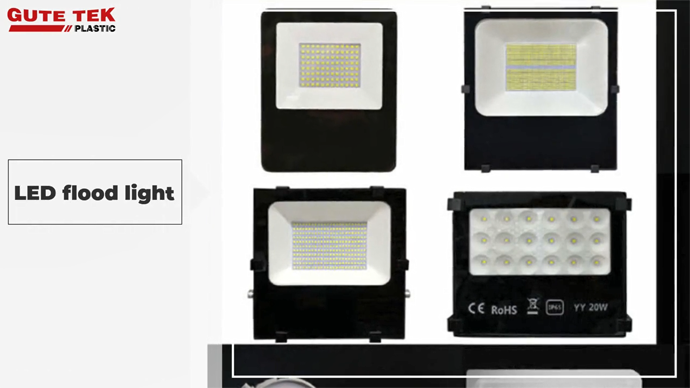

GUTE TEK would like to introduce the application of PC reflective film in led flood light first. PC reflective film is widely wide used in lighting industry,TV backlight mold, LED display, led panel light, led flood light and so on.

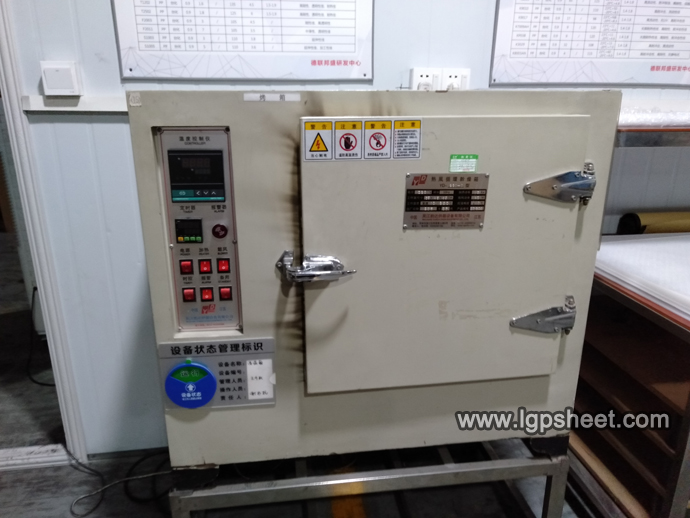

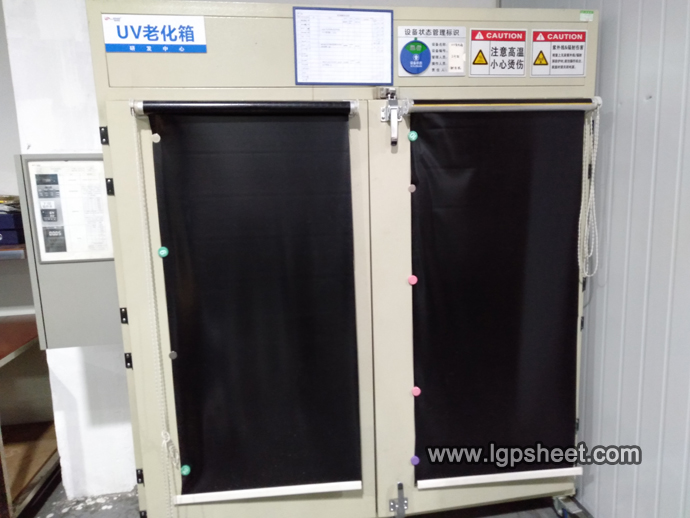

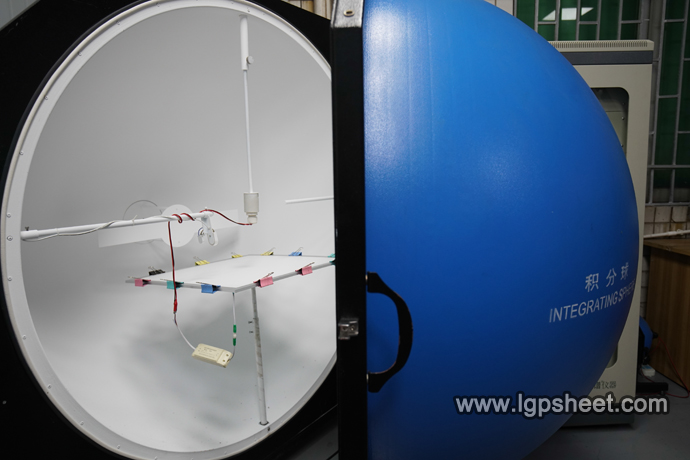

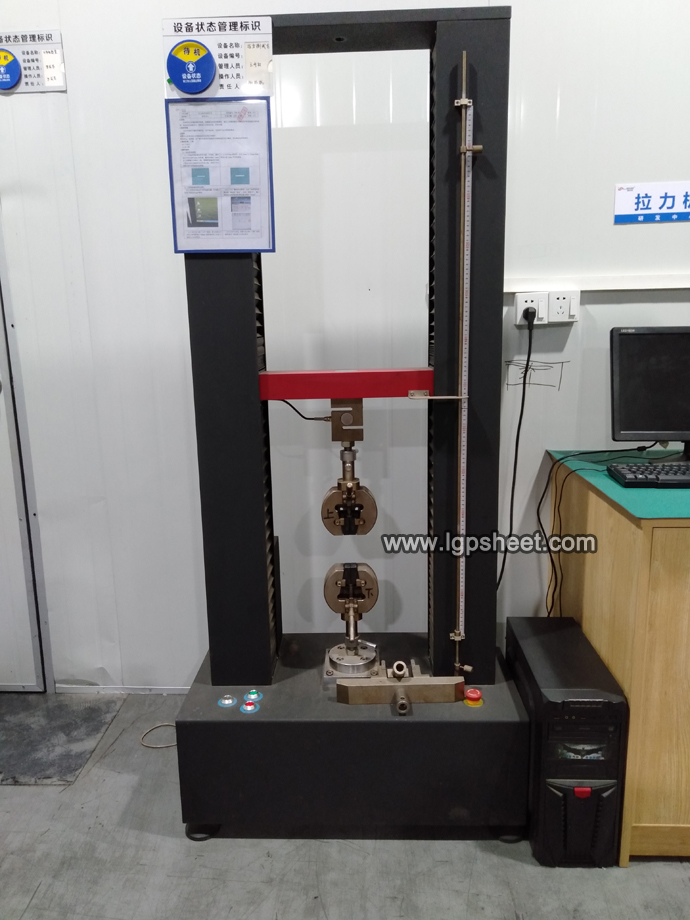

GUTE TEK PC reflective film all has undergone multiple measurements to make sure our clients receive the high quality products, PC reflective film will be tested thermal contraction, heat distortion temperature, tensile strength, tensile elongation, aging test and so on. We have many test machines, like anti uv testing, aging testing, tensile testing and integrating sphere, etc.
Item

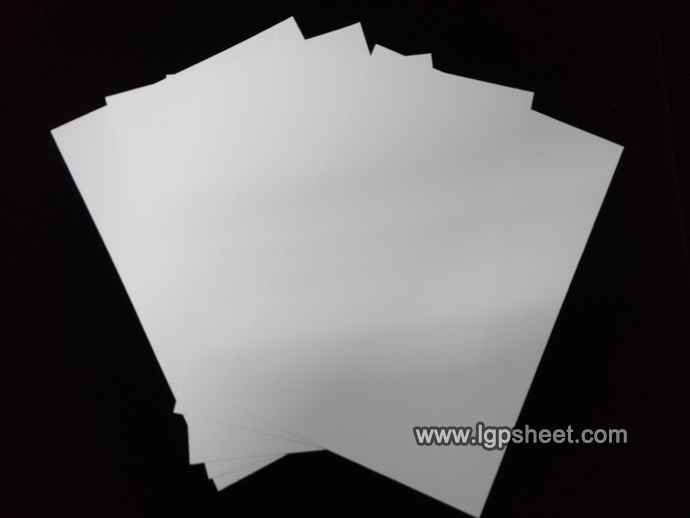

GUTE TEK customized PC reflective film for led flood light
Categories
High reflectivity pc reflective film application.
Material
Light reflective film: PC
Application
Led flood light
Size
According to customer demand
Packing
Protective film+Pallet/Bubble bag/Carton etc.
Lead Time
Sample: 7~10days
Mass production: 10~25 days
Shipment
Air/Sea shipping Express: FedEx / DHL / UPS / TNT etc.
Payment
T/T, LC
PC reflective Sheet
Item
Content
Unit
Results
Method
Thermal Property
Thermal Contraction
MD(Machine Direction)
%
≤1.0
ASTMD1204
TD(Transverse Direction)
%
≤1.0
Flammability
V2
UL 94
Mechanical Property
HDT(heat distortion temperature)
℃
120
ASTMD1525
Tensile Strength
MD(Machine Direction)
MPa
≥100
ASTMD882
TD(Transverse Direction)
MPa
≥120
Tensile Elongation
MD(Machine Direction)
%
≥30
TD(Transverse Direction)
%
≥20
Electrical Property
Surface Resistance
Obverse
Ω
≤1014
ASTMD257
Reverse
Ω
≤1014
Weather Resistance
High-temp. Test
80℃
h
180
/
High-temp. & Humidity Test
65℃, 85%RH
h
250
Cold&Hot Compacting Test
-25℃*1h-65℃*1h
h
100
Advantage
GUTE TEK Polycarbonate is a durable material, it has high impact-resistance.GUTE TEK PC reflective film’s reflectivity more than 98%, can help resolve the glaring and uneven brightness problem for lighting industry.
GUTE TEK PC reflective film can hold up longer to extreme temperature, temperature resistance can be up to 120 ℃.
GUTE TEK PC reflective film is is resistant to corrosion and is safe when tested in hydrochloric acid or other solutions .

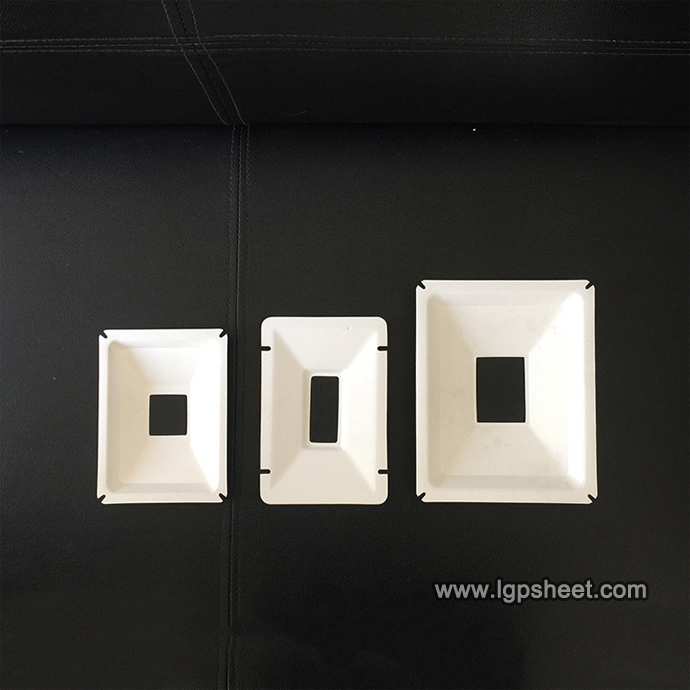

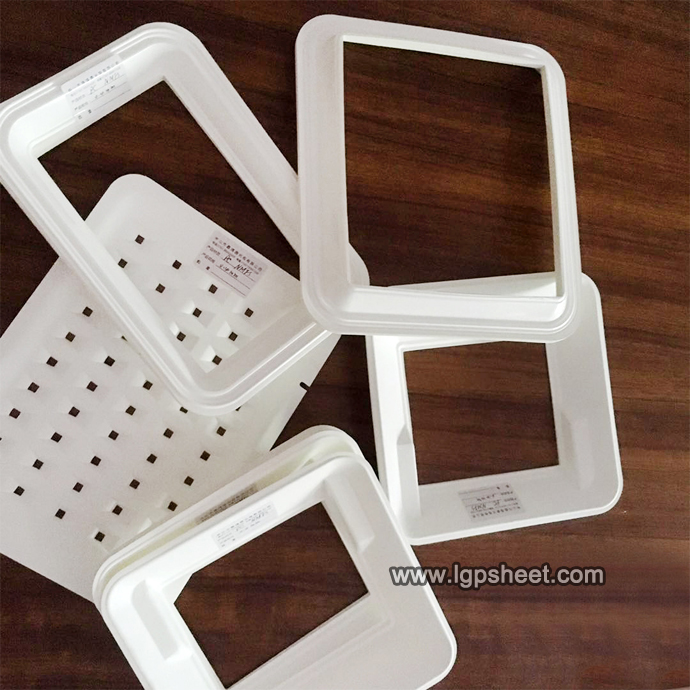

GUTE TEK PC reflective film has Strong processability, it can be cut, stamped and vacuum thermoformed.
GUTE TEK PC reflective film has long service life, 6-10 years.
GUTE TEK PC reflective film has certificates of CE, REACH, ISO 9001 and it is UL94 V-2 combustion standard.
How do I get a quote quickly?
PlS provide your design (drafts, pictures, etc.)AND Tell me the following information:A. Size of the panel light: ____ "(Height) x______"(Length) x______"(Thickness)
B. Thickness of light reflective film: ______
C. Thickness of light diffuser sheet: ______
D. Thickness of Led light guide plate: ______
E.Quantity:_____ pieces
F.When do you need it by : _______.
G.Where to Shipping : ________(Country with postcode please)
FAQ
1， Do you use recycled material?No, absolutely not, our GUTE TEK PC reflective film uses 100% virgin material.
2， Do you offer sample? Is it free?
We basically offer sample free of charge, but not be responsible for the shipping cost.
3， What are your terms of payment?
If payment is less than 10,000USD, 100% in advance; if payment is more than 10,000USD, 30% T/T in advance, balance before shipment.

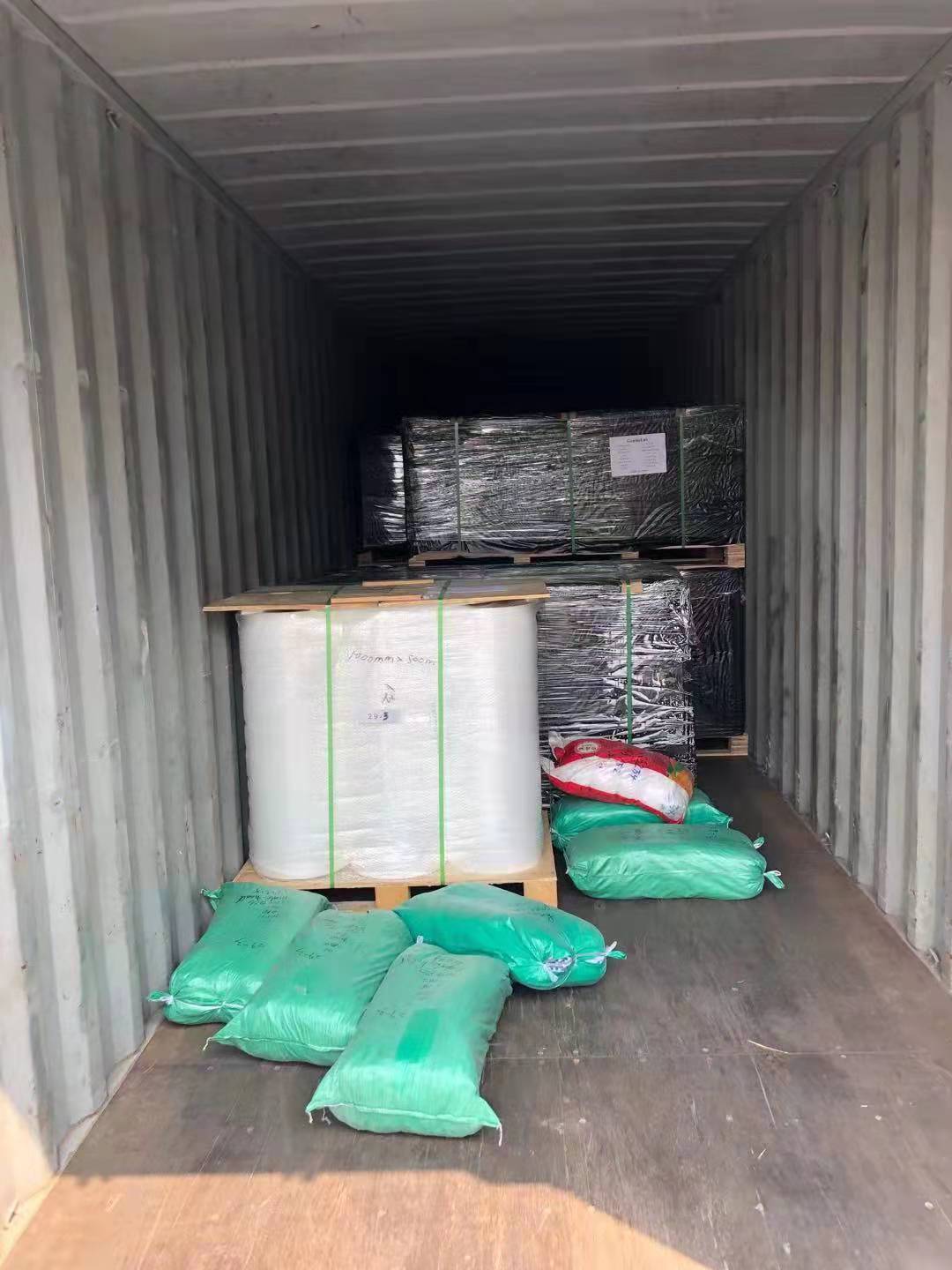

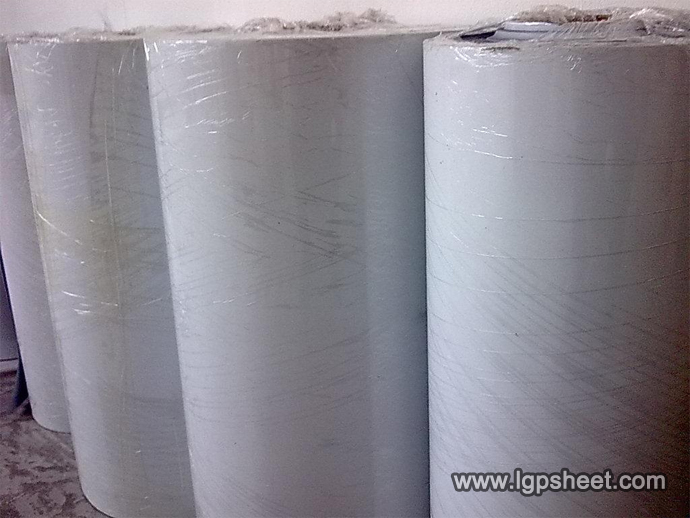

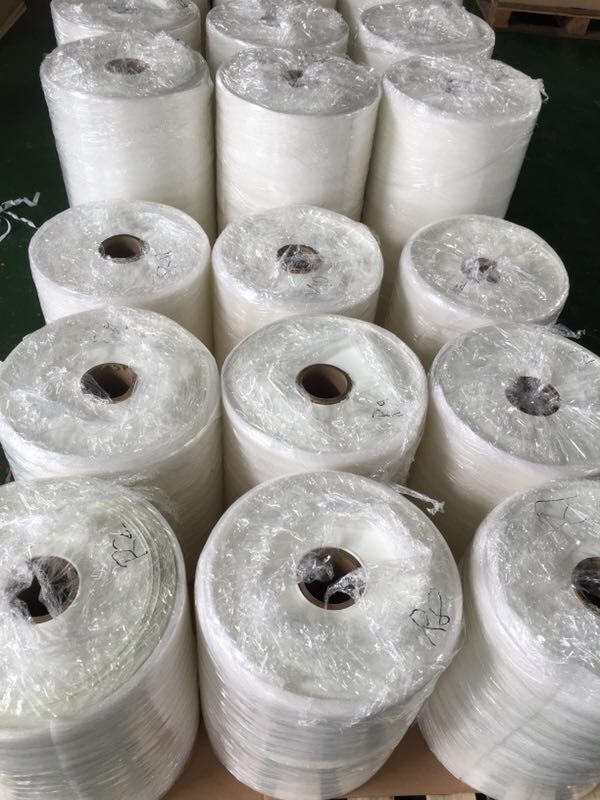

Packaging & Shipping
